DSP160 Complete Set Project Fish Feed Extrusion Line 1800-2000kg/h

Model

Fish Feed Puffing System

Capacity

1800-2000kg/h

Type

Wet Type

Pellet specification

0.9-15mm

Application

Make various types of Fish feed,Pet food,Dog food

Extruder Machine

DSP160-B

Send Email

Chat now

Share With :

Description

Features

Parameters

Inquiry

Description

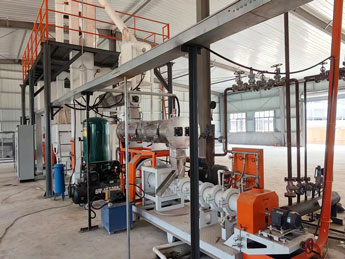

DSP135 Complete Set Fish Feed Puffing System

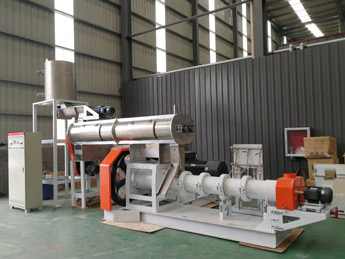

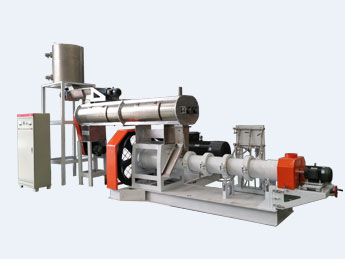

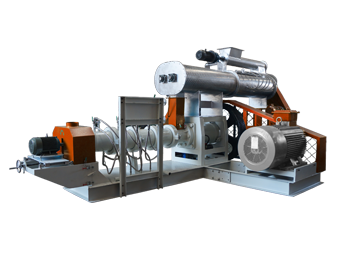

After mixing, the feed pellet extruder will compress feed powder into sized pellets. The wet-type fish food pellet extruder machine is equipped with a boiler that can continuously provide hot steam. It can produce all kinds of floating or sinking aqua feed for fish, eel, shrimp, crab, loach, bullfrog, etc, and can produce many kinds of pet feeds for cats, dogs, etc. The pellet size can be from 0.9-15mm to feed different size fishes. With high capacity and top-quality products, our fish feed pellet machine is a preferred choice for medium or large-size feed processing factories and aquaculture farms.Our fish feed production line can produce various kinds of pellets for different varieties of fish including Halibut pellets, Catfish pellets, CatCarp pellets, Trout pellets, Hemp pellets, CSL pellets,etc.

Smooth operation

Easy installation

Cost-efficient

High Yield

Long life

Mature Technology

Advantages of our fish feed processing plant

This kind of fish feed extruder machine owns a simple structure, wide application, and low noise.

The jacketed construction of the extruder is adopted to control the extruding temperature by adding the materials with hot steam or cooling water.

The diameter of the pellets can be from 0.9mm-15mm.

We offer different die molds to meet the various needs of the diameters of feed pellets.

The machine can Make various types of Fish feed,Pet food, Dog food

mainly sinking pellets, because the density of the pellets is big, if you want to make floating feed, so you need to buy one more extruder.

The fish feed pellet line is widely used in the production of animal feed, such as dogs, cats, fish, foxes, birds, and other pets.

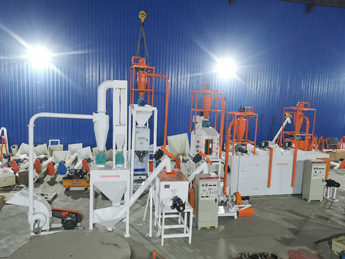

The fish feed pellet manufacturing process, from raw materials crushing to finished product packaging, can be finished at one time.

All the fish feed machines in this plant are with stable operation and advanced technology. It can satisfy the production demands of different customers in the current market.

The technological parameter, such as raw materials, temperature, and moisture, of this fish feed production plant is adjustable. Floating fish feed produced by this plant has a beautiful appearance, unique taste, and rice-nutrient, suitable for different fish and pets.

Features

Features of Feed Pellet Production Line

Advanced technology, high capacity, and low energy consumption.

The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.

Final pellet shapes and sizes can be varied by changing the mold. For fish and shrimp feed pellets, the floating time in water can be adjusted by the extrusion degree adjustment.

To ensure the quality and capacity, there is a special pressure-increased device. Besides, the electric heating device improves the feed expansion rate.

Processing is processed at a high-temperature instantaneous process, greatly reducing the decomposition of nutrients in feed, at the same time improving the protein (through the degeneration of protein) and starch (through starch paste) digestibility, to improve the palatability of the product.

Super quality of Henan Strongwin Feed Extruder

Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

Main Technical Parameters of Main equipments of DSP160-B fish feed extruding line machine
Main Machines	Power (kw)	Capacity (kg/h)
hammer mill	45	2000-2500
Bucket elevator	3	2000-2500
Mixer	15	500kg/batch, need 10-15 minutes per batch.
Bucket elevator	3	2000-2500
Vertical mixer	2.2	1m3
DSP160-B	90	1800-2000
dryer	Mesh belt motor power:5.5kw;Feed motor power:0.75kw'Exhaust fan power:1.1kw;Circulating fan power:0.55kw;amount of steam required:0.5MPa	2000-2500
Drum-type Spray Machine	main power2.2kw;Oil pump power:0.55kw;Oil drum heating power:1.5kw	1000-2000
Counter current cooler	Fan power:4.0kw;Shakron discharger power:0.75kw;The discharge method is pneumatic discharge	1000
Automatic weighing package	1.1	≤300bag/hour;Packing range: 1-50kg/bag
Steam boiler	0.4-0.8MPa	0.5-0.8t/h Steam volume
Control System
Total Price	Contact Strongwin to Get Details and Latest Price
