DSP200 Aquatic Feed Machine Complete Set 3-4TPH

Model
Fish Feed Production Line
Capacity
3-4TPH
Type
Automatic or semi-automatic
Application
For producing aquatic feed, such as fish feed, shrimp feed, etc.
Feed Shape
produce hundreds of shapes by changing moulds
Fish Feed Size
0.9-15mm
Share With :
Description
Features
Parameters
Inquiry

Description

Wet Type Sinking and Floating Fish Feed Production Line
Our wet-type fish feed plant is designed for making commercial pellets from corn, maize, grass, grains, protein, molasses, and so on, and final pellets with different shapes, unique flavors, rich nutrients, and fine texture, are widely used as aquatic and pet feed like goldfish, tropical fish, catfish, shrimps, dog, cat, etc. With super automation control and high production efficiency, our fish feed production line is the best choice for medium and big-sized feed mills and breeding farms. Complete pellet production lines with different capacities are also available to meet customers’ specific demands.
Efficient
Stable
Low Consumption
Mature Technology
Profitable
Easy Maintenance
Advantage of Fish Feed Production Plant

The technological parameter, such as raw materials, temperature, and moisture, of this fish feed production plant, is adjustable. Floating fish feed produced by this plant has a beautiful appearance, unique taste, and rice-nutrient, suitable for different fish and pets.
The fish feed pellet line is widely used in the production of animal feed, such as dogs, cats, fish, foxes, birds, and other pets.
The fish feed pellet manufacturing process, from raw materials crushing to finished product packaging, can be finished at one time.
All the fish feed machines in this plant are with stable operation and advanced technology. It can satisfy the production demands of different customers in the current market.
Engineers and salespersons will specially design for you with your raw materials, self-construction of factory building, and capital budget.
Application

Floating fish feed plant is applicable to produce feed pellets for pets, ornamental fish, pond-fish, and marine fish, such as catfish, shrimps, crabs etc.
A

After installation and adjustment, we will train our customers to work how to operate;
B

Training workers on how to maintain and protect.
C

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintain
D

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

Why to Choose Strongwin Aquatic Feed Production Line?

1

Advanced technology, high capacity and low energy consumption
2

The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.
3

PLC controlled, alarm device is available. The operation is simple and convenient.
4

Final pellet shapes and sizes can be varied by changing the mold. For fish and shrimp feed pellets, the floating time in water can be adjusted by the extrusion degree adjustment.
5

Processing is processed at a high-temperature instantaneous process, greatly reducing the decomposition of nutrients in feed, at the same time improving the protein (through the degeneration of protein) and starch (through starch paste) digestibility, to improve the palatability of the product.
6

To ensure the quality and capacity, there is a special pressure-increased device. Besides, the electric heating device improves the feed expansion rate.


Super quality of Henan Strongwin Fish Feed Production Plant



Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

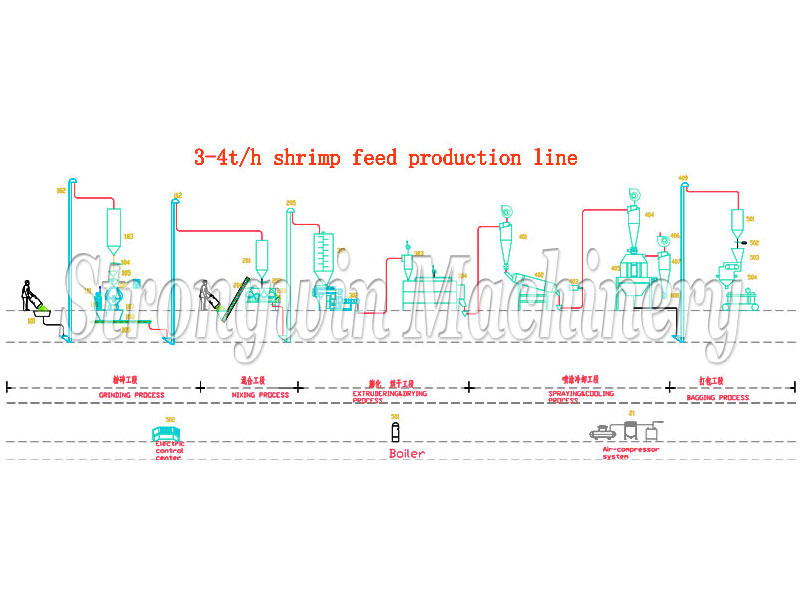

DSP200-B Shrimp feed pellet production line
No. Name Power Capacity
(kw) (kg/h)
101 Feeder
102 Bucket elevator 3 4000-5000kg/h
Bin for crushing   Capacity of storage cabin 2.5m³
104 Pneumatic valve   3000-4000
105 Buffer bucket
106 Impeller feeder 1.5 3000-400kg/h

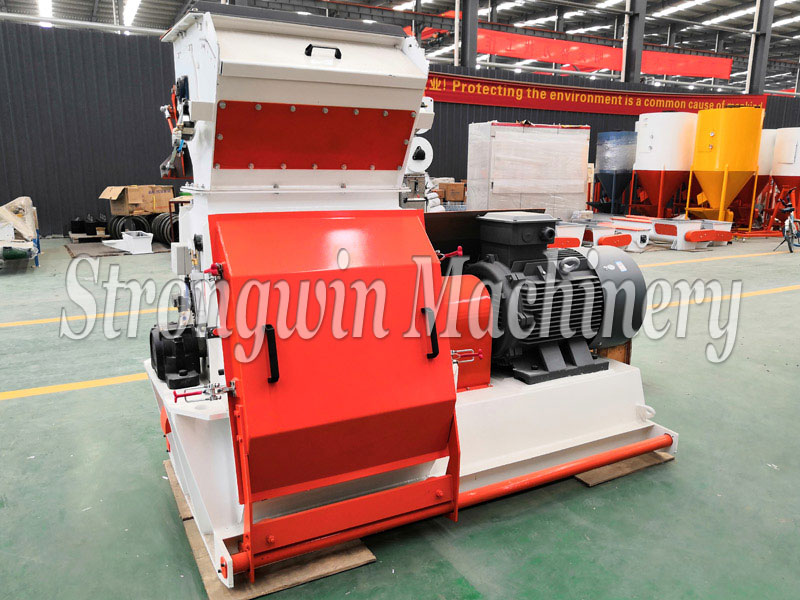

107 Tear-circle Hammer mill 55 3000-4000kg/h
108 Settling chamber
109 Level Screw conveyor 2.2 3000-4000kg/h
110 Fan of impulse filter 7.5 3000-4000kg/h
111 Impulse filter   3000-4000kg/h
112 Bucket elevator 3 3000-4000kg/h
201 Bin for mixing   Capacity of storage cabin 2m³
202 Pneumatic Valve   Capacity:3000-4000kg/h

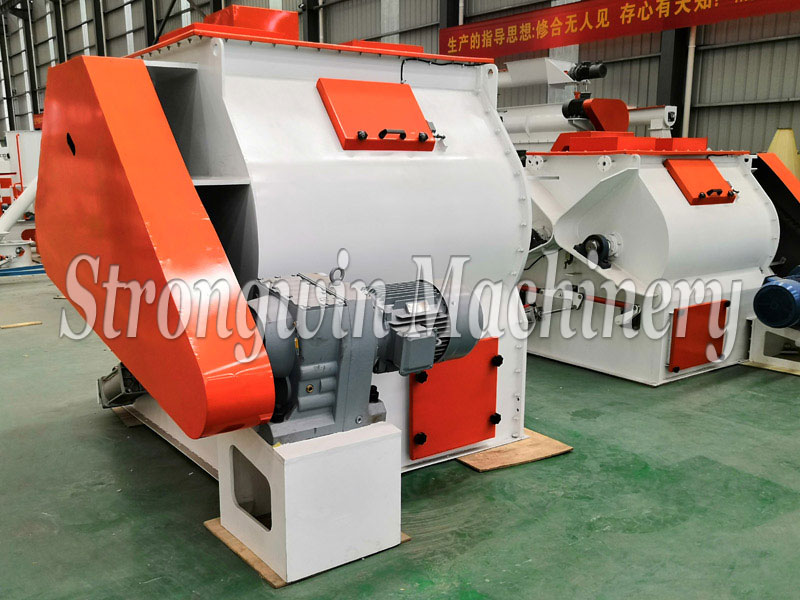

203 Mixer 15 Capacity:1000kg/batch,need 10 minutes per batch
204  Screw conveyor 3 3000-4000kg/h
205 Bucket elevator 3 3000-4000kg/h
301 Vertical mixer 2.2 Capacity of storage cabin:1.5m³

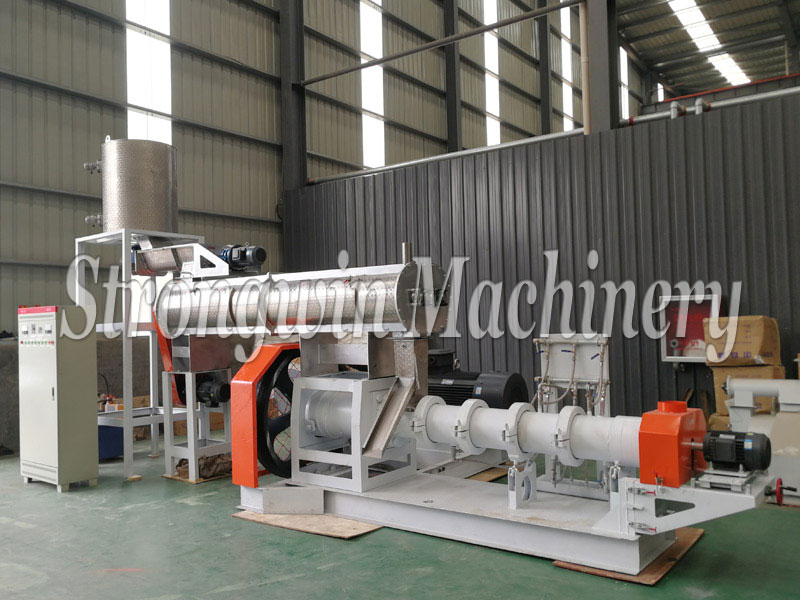

302 Extruder 132+2.2+4+3 3000-4000
303 Pneumatic Conveying Equipment 4+1.1 4000-4500kg/h
304 Dryer 5.5+1.1+1.5 3500-4000
401 Pneumatic Conveying Equipment 4+1.1 4000-4500kg/h
402 Bin for sprayer   Capacity of storage cabin:2.5m³
Sprayer 1.5+0.75+3.0 4000-4500kg/h
403 Caesar feeder 0.09 30-35kg/h
404 Pneumatic Conveying Equipment 4+1.1 4000-4500kg/h
405 Cooler   3000-4000kg
406 Fan 5.5
407 Cyclone
408 Airlock 0.75
409 Bucket elevator 3 4000-4500kg/h
501 Bin for packing   Capacity of storage cabin 3m³
502 Pneumatic Valve   Capacity:3000-4000kg/h
503 Buffer bucket   Capacity of storage cabin 0.5m³
504 Packing machine 1.1 ≤300bag/h,
1-50kg/bag
501 Control System
502 Air compressed 5.5
503 Diesel oil Boiler (Customer supply) 0.4-0.8MPa 2t/h steam
