Animal Feed Pellet Machine SZLH250

Model
SZLH250
Capacity
1.5-2t/h
Main motor power
22kw
Conditioner power
1.5kw
Speed of feeding screw
12-120rpm
Pellet specification
φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
Share With :
Description
Features
Parameters
Inquiry

Description

Professional Animal Feed Pellet Machine SZLH250

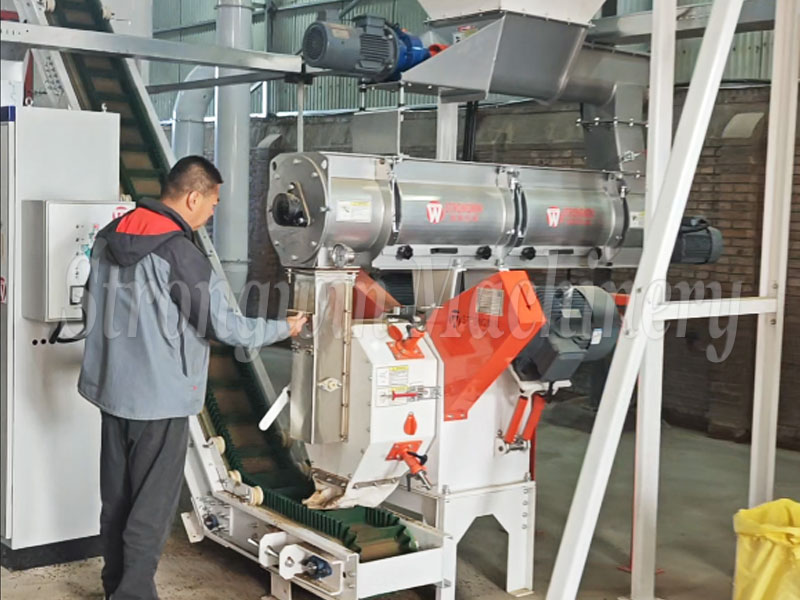

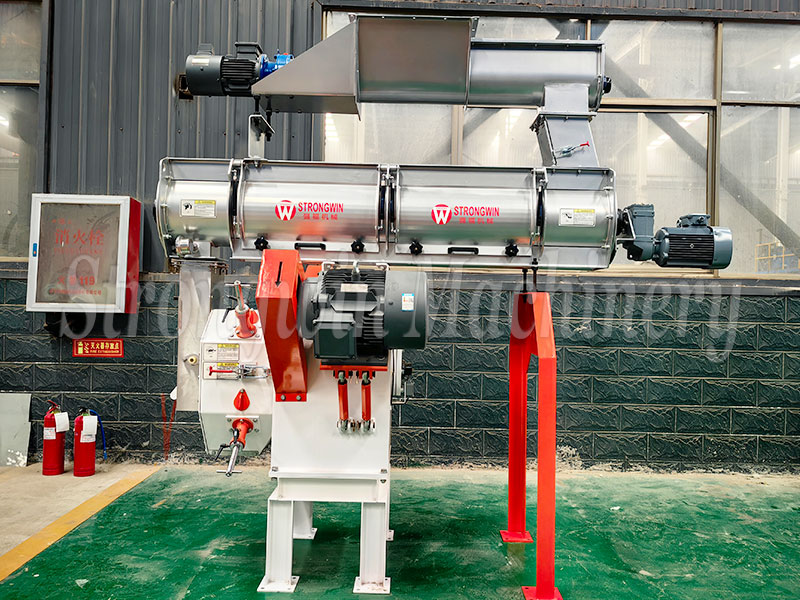

SZLH250 Pellet Mill is the main equipment that presses feed of pellets, which is applied to big and medium size of the factory to produce high-quality pellets. The capacity of SZLH250 is 1.5-2t/h, SZLH250 Pellet Mill are suitable for feed factory that produces powder 15000 tons per year and 20000 tons per year respectively. It can be grain, such as wheat, corn, maize, etc, and some grass, straw also can be applied to this machine and has a very broad application. It's used in 1-2t/h feed pellet production lines.
Efficient
Stable
low noise
Convenient for installation
reliable work.
Mature Technology
The Ring Die Feed Pellet Mill Detailed Instructions

This machine has ring die of different pore diameters, such as φ2, φ3, φ4, φ4.5, φ5, φ6, φ8, and φ10. The customer can select at will according to their own different requirement.
SZLH250 adopts feeding by the continuously viable motor. Equip with discharge out of the machine and lubricating system (oil is added into the pump by adding pressure).
If the raw material is particle size,first,we need crush them to powder less then 3mm powders.
And there are also some requests for raw material moisture, it is better if less than 30%.
If you want to make different size pellets, the size, generally we mean the diameter of the pellets, you can buy several different size ring dies.
The machine can make pellets for poultry, cow, cattle, pig, chickens, and so on.

Application: for making cattle, geese, pig, duck, chicken, sheep, rabbit, and other animals, livestock, and poultry feed.Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellets, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
A

After installation and adjustment, we will train our customer's work how to operate;
B

Training workers on how to maintain and protect
C

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintains)
D

Our company after-sales department will call you at regular intervals, ask if maintenance and give advice.





Features

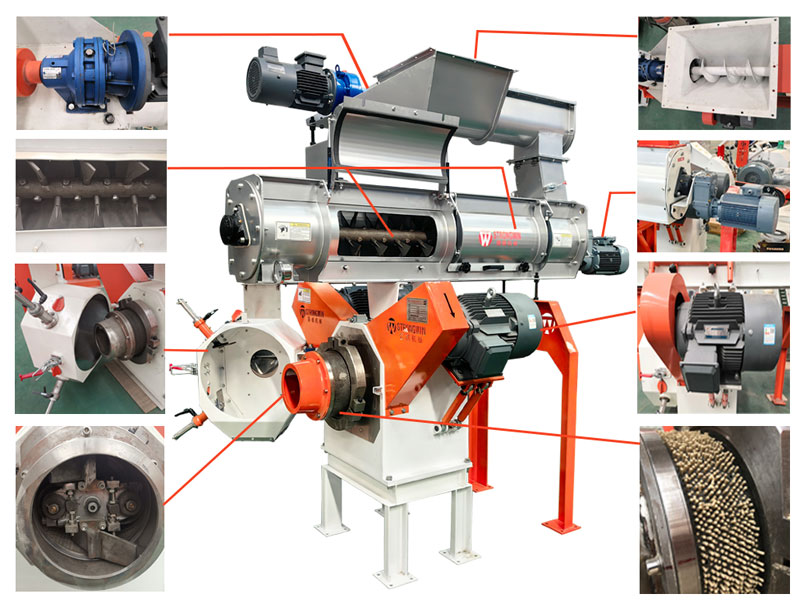

Feed Pellet Mill Firm Structure SZLH250 feed pellet machinery

1

The compression ratio can be Customized
2

Electric motor: Germany SIEMENS
3

The Pellet machine is made up of systems of feeding, stirring, pelleting, driving, lubrication, etc.
4

Full 304 stainless steel conditioner, ensures the high quality of pellet feed.
5

We can customize double or three-layer conditioners for clients.


Super quality of Henan Strongwin Feed Pellet Mill



The material thickness of the main equipment is more than the feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increased by 3-5%.





Parameters

Model SZLH250
Main motor power 22kw
Conditioner power 2.2kw
Feeder power 0.75kw
Ring die diameter 250mm
Capacity 1.5-2t/h
Finished pellet size φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm
