Flat Bag Impulse Filter For Feed Production Line

Model
Pulse Dust Collector
High dust removal efficiency
99% or higher
Share With :
Description
Features
Parameters
Inquiry

Description

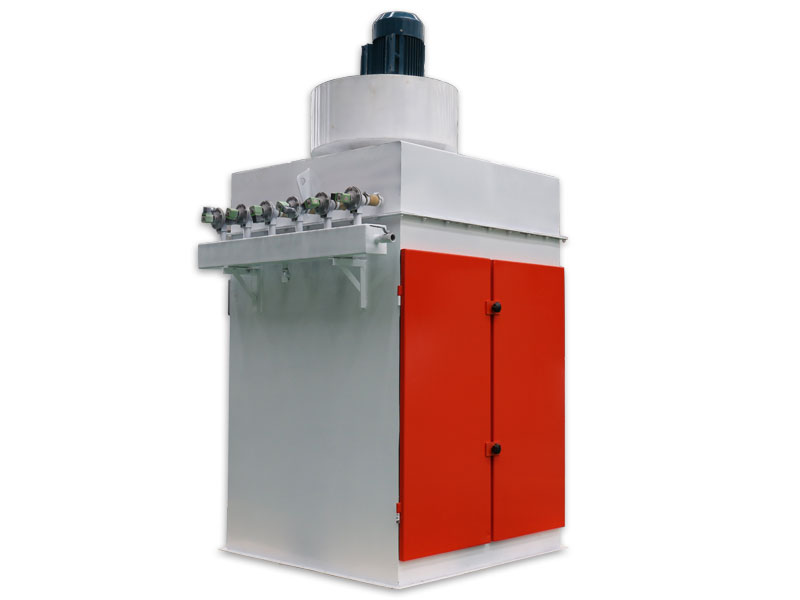

Flat Bag Impulse Filter For Feed Production Line
Working principle: the dust-containing gas enters the lower tank from the air inlet, and the dust with larger particle size settles first. The small dust-containing gas is filtered through the filter bag to become purified air, enters the upper tank, and is discharged from the air outlet. Attached to the outer surface of the filter bag. When the accumulated dust reaches a certain amount, it must be cleaned. When the ash is cleaned, the high-pressure airflow triggers the solenoid valves in the order of the pulse controller, and enters the filter bag through the nozzle hole. The filter bag suddenly expands rapidly, so that the dust accumulated on the surface of the filter bag shakes off and enters the ash discharge device. The air blower is discharged, so that the periodic pulse is sprayed to clean the filter, so that the filter bag is in an effective filtering state to ensure the normal operation of the dust removal system.
Unique injection device
Effectively
Convenient mainternace
Advanced
Humanized design
99% dust removal
Detailed instructions of Flat Bag Impulse Filter For Feed Production Line

It adopts advanced flat bag and box structure, mainly used for dust removal of the feeding port.

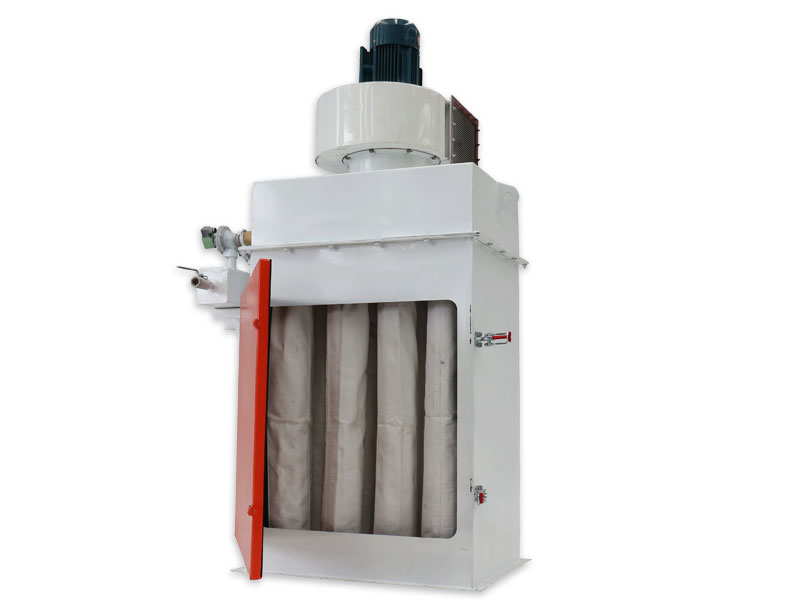

With a unique blowing device, the use of the upper door to remove the bag structure, easy maintenance.
The filtering area of each bag is up to 1 square meter, which greatly reduces the floor space.
Adopt TDFK high-pressure solenoid valve, the venting amount is increased, the dust removal effect is good, and the air inlet is placed on the ash bucket, which avoids the dusty air directly scouring the filter bag and improves the life of the cloth cylinder.
Adopting the patented technology of bag fast loading and unloading mechanism to reduce the installation space requirement, the upper space can be lowered by 1.5 meters, and the door can be quickly disassembled by opening the door.
High dust removal efficiency (99% or higher), filter bag can according to user needs to choose super fine, heat resistance, moisture resistance, antistatic,etc.
Application

TBLM series pulse dust collector is a bag type high pressure reverse jet pulse type dust collector, which can be widely used in dust extraction and dust removal in grain, feed processing, machinery, metallurgy, building materials and cement industries, and dust cleaning in pneumatic conveying. Or recycle filtration.

Features

Pulse Dust Collector For Feed Plant Features

1

The adoption of advanced round bag and box type structure, one solenoid valve injection multiple bag at the same time.
2

Humanized design "super double open the access door" structure, and convenient mainternace.
3

An unique jet device which is equipped with a dismountable cabinet and builtin envelopesasy for maintenance.
4

Up to 1 square meter filtration area of each bag enables its installation in a small space.


We Provide Turnkey Projects For Animal Feed Plant



Designed to meet for your area.
Factory direct advantage, Price is direct from the factory
Engineers Installation
According to container size, standard export package.

Parameters


Model

TBLMb.4

TBLMb.9

TBLMb.12

TBLMb.24

Collection Efficiency (%)

99.5

99.5

99.5

99.5

Filter area (m2)

4

9

12

24

Air volume m2/h

1131-2356

1688-3517

2664-5268

7728-15455

Air pressure (Pa)

0.5-0.7

0.5-0.7

0.5-0.7

0.5-0.7

Power (Kw)

1.5

2.2

3

5.5

Price

Contact us for full detail parameters and price
